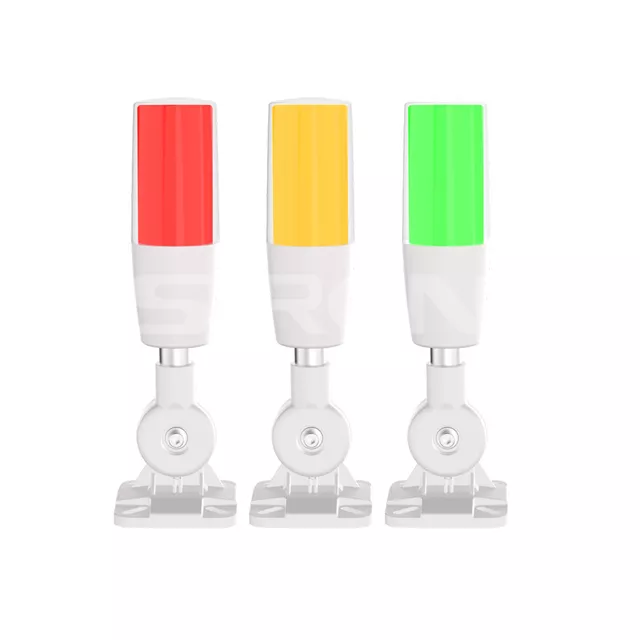

SiRON D018-7/8/9 Series LED Integrated Three-color Signal Light

Giá: Liên hệ

Features:

* Three-dimensional lamp shade strong texture with anti-glare effect.
* LED high quality chip light source high brightness performance stable long life.
* High decibel buzzer enhanced warning effect.

Chi tiết sản phẩm

Product Description

ABOUT SELECTION


PC white screed PC transparent lampshade	Red: fault alarm Yellow: caution Green: normal operation

High pitch warning Bottom buzzer sounds	Chip LED long life

Model analysis
①	LED signal light series	D018
②	Installation mode	7:upright type 8:bend type 9:L-shaped bracket
③	Working status	Blank:three colors(red,yellow and green)
④	Working condition	Blank:Always on B:Always on with buzzer S:Flashing Q:Flashing with buzzer
⑤	Connection mode	Blank:common positive/negative Universal C:contact type

Specifications

Model number	D018-7	D018-8	D018-9
Appearance
Installation mode	Vertical type	Bent type	L-bracket
Power/lnput voltage/lnput current	Power:2W~4.5W Input voltage:24V DC/220V AC Input Current:20mA~5.5mA
The material/color layer	Material:Lamp shade PC+lamp shell ABS+aluminum alloy rod Number of color layers:three colors (red,yellow and green)
Light source/Luminous angle/Protection level	Light source:Patch 2835 LED luminous Angle:whole lamp 360°Visual protection level :IP40
Working condition/Connection mode	Working state:Always on/Always on with buzzer/flashing/flashing with buzzer Wiring mode: direct power input type(common positive/negative)/contact type
Pound intensity/Service life/Standard wiring length	Sound intensity:Buzzer>90 dB Service life:50000h Standard wiring length:1500mm
Operating humidity/Storage humidity	Operating temperature:-20~45℃ Storage temperature:-40~70℃
Operating humidity/Storage humidity	Operating humidity:10~90%Storage humidity:10~90%
Luminescent lamp source color
