SiRON D022-1 Series LED Signal Lamp
Giá: Liên hệ
Features:
* Hidden foldable base.
* Convenient equipment transportation, easy to install stable.
* High light LED patch.
* High brightness and low power consumption, bright light is not dazzling.
* The overall aluminum alloy structure design has good heat dissipation.
* Long service life.
* Convenient equipment transportation, easy to install stable.
* High light LED patch.
* High brightness and low power consumption, bright light is not dazzling.
* The overall aluminum alloy structure design has good heat dissipation.
* Long service life.
Chi tiết sản phẩm
Product Description
ABOUT SELECTION
 |
 |
| LED signal light
Luminous uniformity >95dB Precision aluminum |

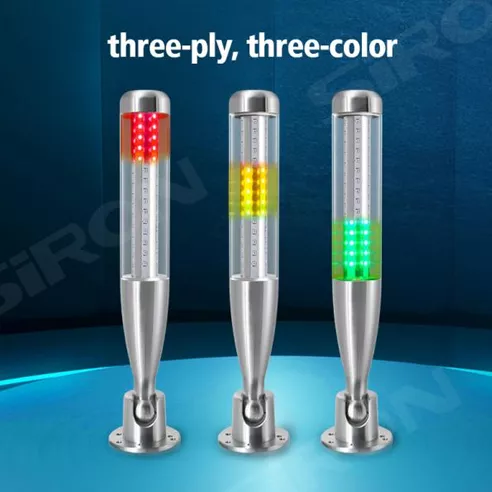

Three-ply, three-color |
 |
 |
| Folding type 90 mounting
Hidden foldable base Convenient equipment transportation Easy to install stable |
High brightness and low energy consumptionHigh light LED patch
High brightness and low power consumption, bright light is not dazzling High brightness LED |
Type analysis |
||
| ① | LED signal lamp series | D022-1 |
| ② | Working condition | Blank:Always on B:Always on with buzzer |
| ③ | Signal polarity | Blank:NPN P:PNP |
Specifications
| Model number | D022-1 |
| Appearance |   |
| Input voltage/ input current | Input voltage:Dc 24V Input current:monochrome 100mA Buzzer 25mA |
| The material | PC lamp shade+aluminum alloy lamp case |
| Power | 2.4W～3.2W |
| Light source/Luminous angle | Light source:Patch 2835 LED luminous Angle:360° |
| Sound intensity/Class of protection | Sound intensity:>95dB Protection level:IP50 |
| Color layer | Three layers and three colors |
| Working condition | Always on/Always on with buzzer |
| Installation mode/Number of flashes | Installation mode:bending type90° Number of flashes:60-70/min |
| Service life/Standard wiring length | Working life:70000h Distribution length:500mm |
| Connection mode | NPN common positive electrode /PNP common negative electrode |
| Ambient temperature/storage temperature | -20~45℃/-40~70℃ |
| Ambient humidity/Storage humidity | 10~90% |
| Luminescent lamp source color |  |
