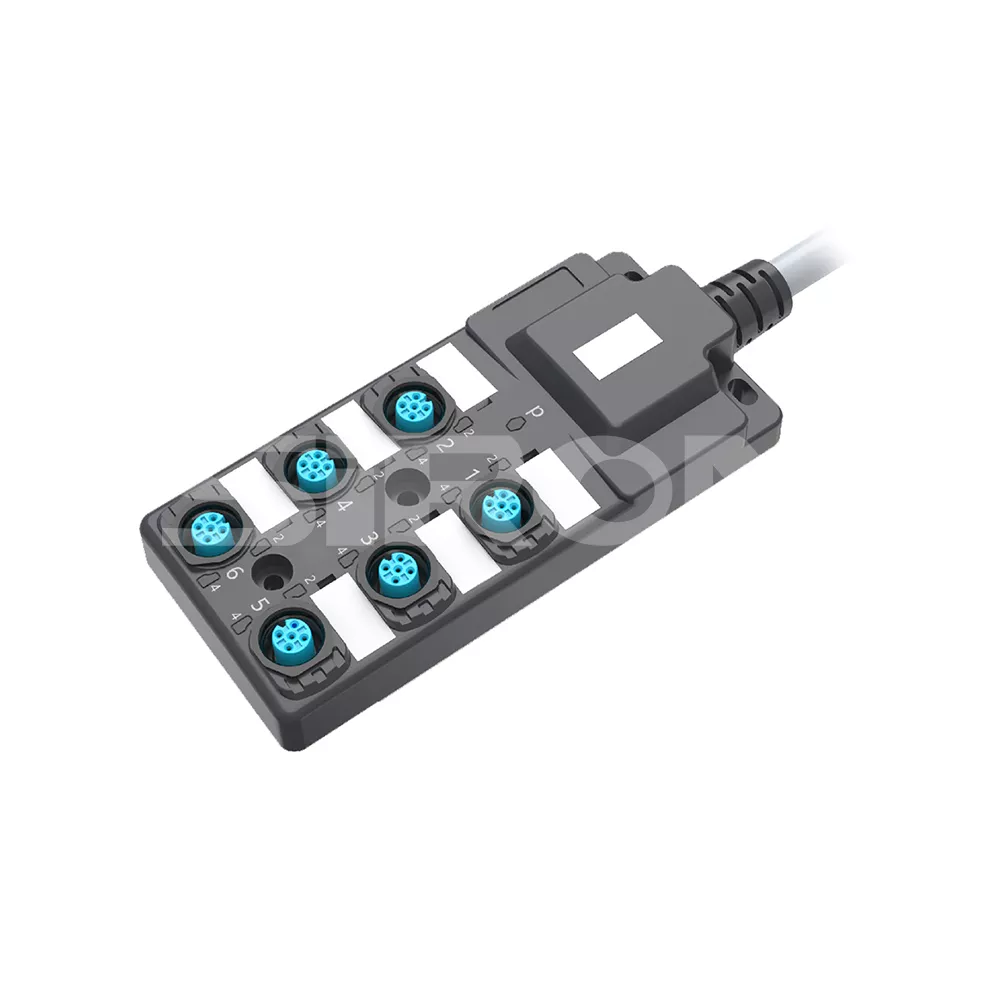

SiRON H427-12 Series Lead Type (Ip67) Junction Box
Giá: Liên hệ
Features
- M12 lead type, convenient for installation in small space; NPN/PNP output;
- LED indicating function and up to lP67 protection level;The standard cable length is 3000mm and the cable material is PVC
Chi tiết sản phẩm
Product Description
Order
Selection example :H427-124, indicating the H427 series, leads type distribution box, M12, 4-port, single-channel, NPN output, wire length 3000mm PVC cable.
H427-124p indicates the H427 series, a leaded distribution box, M12, 4-port, single-channel, PNP output, with a wire length of 3000mm PVC cable.
Note: Drag chain PUR cable, default drag chain 5 million times; If you need drag chains for 10 million times, please contact our sales staff.
Specifications
| Model | H427-124 | H427-126 | H427-128 | H427-1210 | H427-1212 |
| Output function | Single signal Double signal | ||||
| Output type | NPN/PNP | ||||
| Connector specification | M12: 5-pin connector | ||||
| Operating woltage | 24V DC | ||||
| Working current | 4A | ||||
| Total current | 6A | ||||
| Indicator light | Power supply: Green Signal: Yellow | ||||
| Housing protection class | IP67 | ||||
| Cable material | Grey PVC cable/3×0.75 mm + 8×0.34 mm | ||||
| Cable diameter | 8mm | 8mm | 8mm | 10mm | 10mm |
| Cable length | 3000mm | ||||
