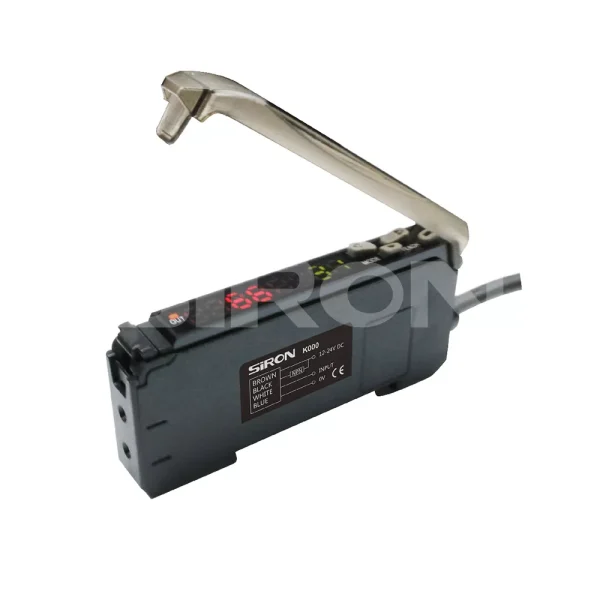

SiRON K000 Series Fiber Amplifier Ultra-high-speed Response Type
Giá: Liên hệ
Features:
* The industry’s ultimate response speed of 15 microseconds . Red and green digital contrast display, easy to set.
* Unique light intensity compensation technology, stable detection.
* Unique light intensity compensation technology, stable detection.
Chi tiết sản phẩm
Product Description
About selection
Selection example: K000 indicates the K000 series, with NPN output；
K000-P indicates the K000 series, PNP output.
Specifications
| Name | Ultra high speed responsive dual digital display fiber amplifier | ||
| Model | KO00/K000-P | ||
| Appearance |   |
||
| light source | Red LED(660nm) | External input function |
Remote teaching,light emission stop input,synchronous trigger inpu |
| Operating Voltage | 12~24V DC | Operating temperature |
-25℃~+55℃ |
| Current consumption | Stander mode:36mA max(Single channel)energy-saving mode 25mA max(Single channel) |
Working humidity |
35-85%RH |
| Output mode | Single channel | Ambient luminosity |
sunniness≤10000lux,Incandescent lamp irradiation≤3000lux |
| ≤100mA/30V DC,Load≤100mA,residual voltage≤1.8V Always open(Light entry action)/normally closed(ight-blocking action)mode is optional |
Protect the circuit |
Overload protection,short-circuit protection | |
| Switch mode | L.on (Light entry action))/D.on(Light-blocking action)can be set | Anti-vibration | 10～55Hz double-amplitude 1.5mm,XYZ three directions, 2hours each 50G(500m/S2), |
| Pilot lamp | Single-channel output indicator light(red) | Impact resistant | XYZ three directions |
| Display screen | 7-section 8-digit digital display (red:4 digits,orange:4 digits) | Protectionlevel | IP50 |
| Response time | 15us/22us(1-HS),70us(2-FS),250us(3-ST),500us(4-LG), 1ms(5-PL),2ms(6-UL),8ms(7-EL) |
Material | Shell:PPE,Panel:PC |
| ON/OFF delay function |
ON delayed.OFF delayed、Single-pulse output、ON+OFF delayed ON delayed+Single-pulse output 0.1~9999ms |
Cable | 5-core cable |
| Detection distance | correlation:4000mm diffuse reflection:1200mm | Cablelength | 2M |
| Sensitivity adjustment |
Teaching adjustment/manual adjustment | Weight | 50g |
