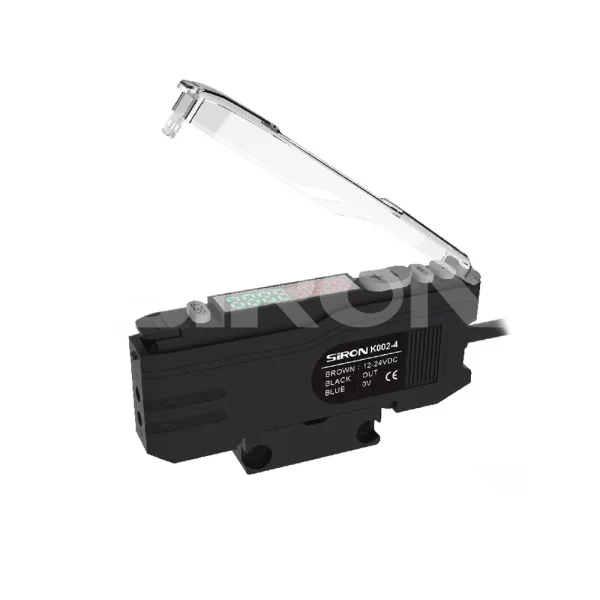

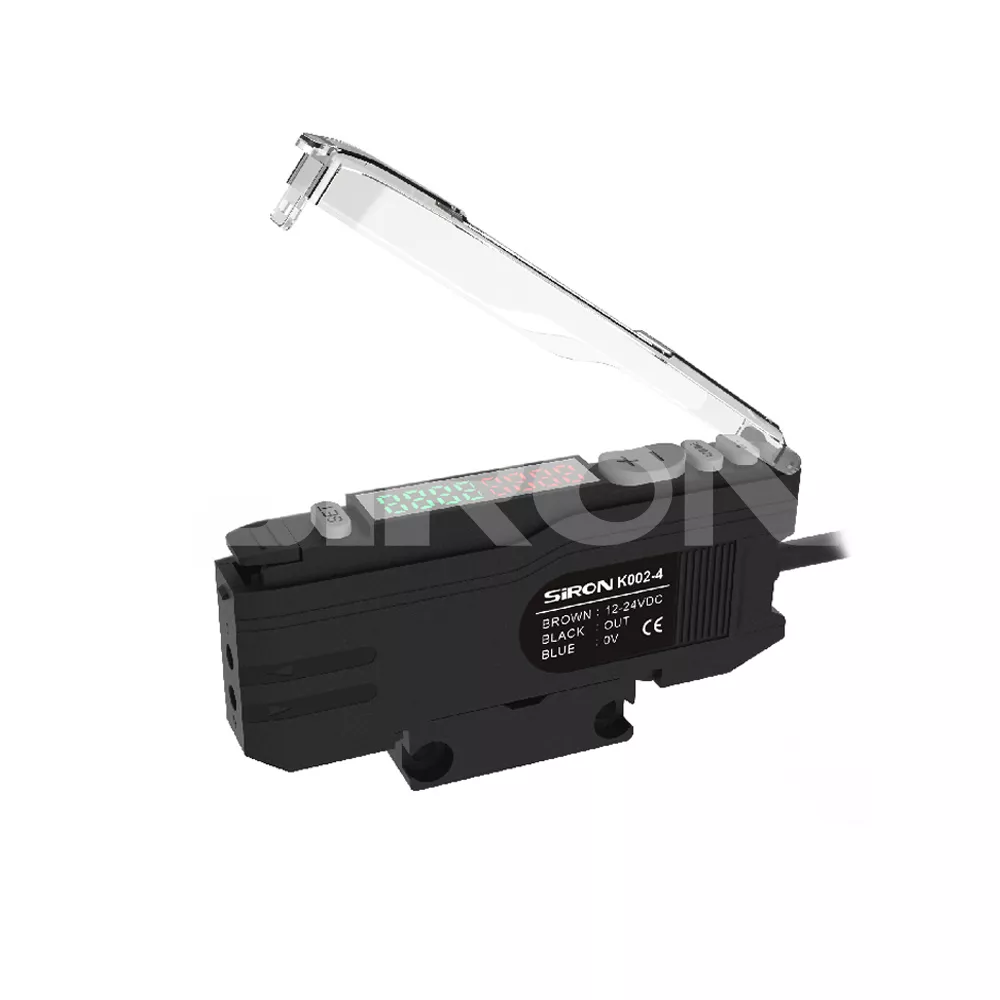

SiRON K002-4 Series Enhanced Dual Digital Fiber Amplifier IP64

Giá: Liên hệ

Features:

*LED light source detection.
* Accurate detection of dead lights, broken lights, and light sources.

Product Description

About selection

Example of model selection: K002-4 indicates the K002 series, 4-digit serial number, with NPN output.

Specifications

Name	Dual Digital FiberAmplifier (Enhanced)
Model	K002-4
Appearance
Supply voltage	DC12~24V+10%
Current consumption	≤30mA
Light source	4-element red light-emitting diode, 630nm
Detection distance	It depends on the light intensity of the detected light source.
Response time	P-0:50us;P-1:200μs;P-2:400μs;P-3:800μs;P-4:4ms
Frequency of response	1000Hz
Delay function	o delay / Single output delay / Pull-up delay / Pull-down delay Delay time: Adjustable from 1ms to 9999ms
Output mode	NPN open collector
Maximum input current	100mA
Maximum residual voltage	<1V
Switch mode	Light.on (light-on action) / Dark.on (light-blocking action) switchable
Display	Threshold setting value: 4-digit green LED;Current collected value: 4-digit red LED
Ambient illumination	Incandescent lamp ≤ 3000Lux;Sunlight ≤ 10000Lux
Ambient temperature	Operating temperature: -10℃~55℃; Storage temperature: -25℃~70℃, no freezing
Ambient humidity	Operating humidity: 35%~85%RH; Storage humidity: 35%~95%RH, no condensation
Protection circuits	Reverse polarity protection/Surge protection/Short-circuit protection
Degree of protection	IP64
Connection	Wire lead-out type (3-core, standard wire length 2 meters)
Housing material	ABS
Vibration resistant	10~55 Hz, double amplitude 1.0 mm, 30 minutes for each of X/Y/Z directions
Impact-resistant	300 m/s², 3 times for each of X/Y/Z directions
