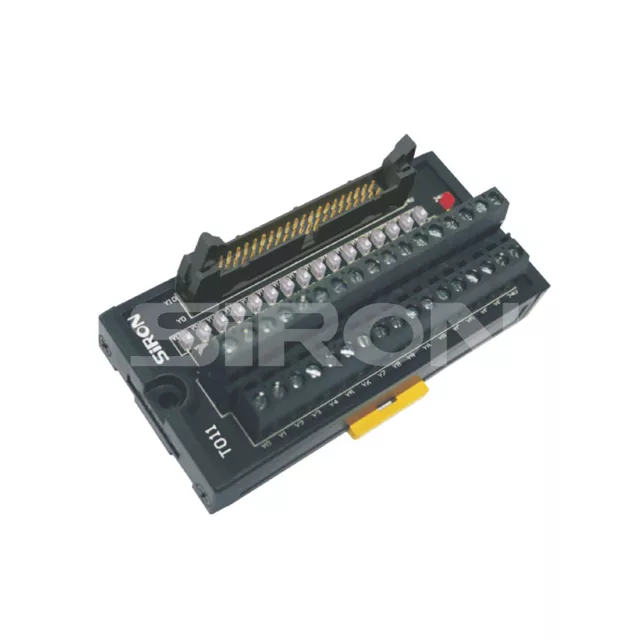

SiRON T011 32 Bit Input/output MIL Terminal Block
Giá: Liên hệ
Features
● The 40P MIL connector is adopted as the input terminal, and in combination with the corresponding X series cable of our company, it can directly correspond to any PLC module with 32-bit input/output on the market, and is organized into 2 groups of 16-bit terminals.
● The NPN/PNP bipolar input corresponds, and the indicator light will also light up in different colors according to the different input signals. Green – NPN; Red – PNP.
Note
● Before ordering，please confirm the PLC pin definition,choose the suitable terminal.
● When PLC connection,Please be sure to use the corresponding special cable developed by our company.
● Before ordering，please confirm the PLC pin definition,choose the suitable terminal.
● When PLC connection,Please be sure to use the corresponding special cable developed by our company.
Chi tiết sản phẩm
Product Description
Specifications
| Input | Nomina loperaing current | 1A |
| Nominal coil voltage | DC24V | |
| Corresponding output Devices | The input side or output side load
switches.Input side of the switching elements.The output side of the load. |
|
Suitable PLC
| KEYENCE | KV-C32XA/C KV-C32TA/C KV-C64XA/C KV-C64TA/C |
|
| OMRON | CJ1W-ID231/CJ1W-ID261 CJ1W-MD261(IN) CJ1W-ID232/CIiW-ID262 CJ1W-MD263(IN) CJ1W-MD563(IN) CJ1W-OD231/CJ1W-OD261 CJ1W-MD261(Out) CJ1W-OD232/CJiW-OD233 CI1W-OD262/Ci1W-OD263 CJ1W-MD263(Out) CJ1W-MD563(Out) |
|
| SIEMENS | 6ES7321-1BL00-0AA0 6ES7321-1EL00-0AA0 |
6ES7321-1BH50-0AA0 6ES7321-1CH20-0AA0 |
| SM322/6ES7322-1BL00-0AA0 | 6ES7322-1FL00-0AA0 | |
| SM323/6ES7322-1BL00-0AA0 6ES7321-1BH00-0AA0 6ES7321-1BH02-0AA0 |
6ES7322-1BH00-0AA0 6ES7322-1BH10-0AA0 6ES7322-1FH10-0AA0 |
|
| 6ES7321-1BH01-0ABO | 6ES7322-1BH01-0AA0 | |
| Yokogawa | F3WD64-3N(IN) F3WD64-3N(OTU) F3WD64-3F(IN) F3WD64-3F(OTU) |
|
| MITSUBISHI |  |
QH42P QX81 QY81P |
| Panasonic | FPG-XY64D2T/P FP2-C1D(IN) |
|
| FP2-X32D2 | ||
| FP2-X64D2 FP2-C1D(OUT) FP2-XY64D2T/XY64D7T(IN) FP2-XY64D2P/XY64D7P(IN) FPG-XY64D2T/P FP2-C1D(OUT) FP2-32T/P FP2-Y64T/P |
||
| FP2-XY64D2T/XY64D7T(OUT) FP2-XY64D2P/XY64D7P(OUT) |
||
Related products
| Suitable cable |
X211-1 X211-2 X212-1X215-4 X217-1X217-2 X218-6 X218-7 X219-1 X219-2 X215-8 |
| For detals,please reler to the drectory cable senies |
