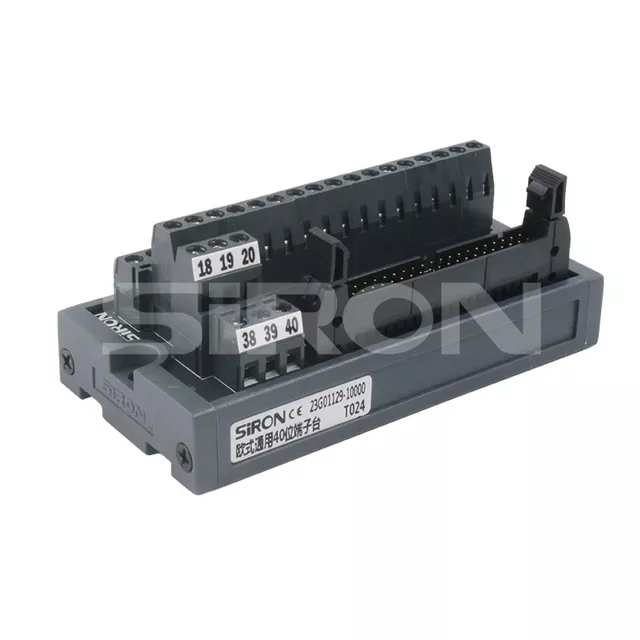

SiRON T024 Series European-style Universal 40-bit Terminal Block
Giá: Liên hệ
Features
● T022/T022-K is a 20pin terminal connection for 20pin connector, suitable to all PLC connections with 20pin MIL plug on the market.
● T023/T023-K is a 34pin terminal connection for 34pin connector, applicable to KV-32XA/C, KV-64XA/C,KV-32TA/C and KV-64TA/C.expansion modules of KEYENCE PLCs.
● T024/T024-K is a 40pin terminal connection for 40pin connector, small size for space saving.
Note
● Before ordering，please confirm the PLC pin definition,choose the suitable terminal.
● When PLC connection,Please be sure to use the corresponding special cable developed by our company.
Suitable wire
| 1.5mm² Following/AWG16; Stripping Length:6mm |  |
Type selection reference
| Model | T022 | T022-K | T023 | T023-K | T024 | T024-K |
| Name | European-style universal
20-bit terminal block |
European-style universal34-bit terminal block | European-style universal
40-bit terminal block |
|||
Suitable PLC
| OMRON | CJ1W-MD232
CJ1W-MD233 |
CJ1W-ID231
CJIW-ID261 CJIW-MD261(IN) CJ1W-MD263(IN) CJIW-MD563(IN) CJ1W-OD231 CJ1W-OD261 CJ1W-MD261(Out) |
CJ1W-OD232
CJ1W-OD233 CJ1W-OD262 CI1W-OD263 CJ1W-MD263(Out) CJ1W-MD563(Out) CJ1M-CPU21 CJ1M-CPU22 CJ1M-CPU23 CJIW-ID232 CJ1W-ID262 |
||
| MITSUBISHI | FX1NC-16MT FX2NC-16EXL-C
FX1NC-32MT FX2NC-16EYT FX2NC-16MT FX2NC-17EYT-C FX2NC-32MT FX2N-10PG FX3UC-32MT FX2N-10GM FX2NC-16EX FX2N-20GM FX2NC-16EX-C |
QX41QX41-S1
QX42 QX42-S1 QX71 QX72 QY41P |
QY42P
QY71 QH42P QD70P4 QD70P QD70D QD75M |
||
| KEYENCE | KV-NC16EX
KV-NC16ET |
KV-C32XA/C
KV-C64XAC KV-C32TA/C KV-C64TA/C |
KV-NC32T
KV-NC32EX KV-NC32ET KV-NC16EXT |
KV-1000
KV-3000 KV-5000 KVH20S KVH40S FPG-XY64D2T/P FP2-C1D FP2-X32D2 FP2-X64D2 FP2-32T/P FP2-Y64T/P FP2-XY64D2T FP2-XY64D7T |
KV-SH04PL |
| Panasonic | FPG-XY64D2T/P
FP2-C1D FP2-X32D2 FP2-X64D2 FP2-32T/P FP2-Y64T/P FP2-XY64D2T FP2-XY64D7T |
FP2-XY64D2P
FP2-XY64D7P FP2-PP21 FP2-PP22 FP2-PP41 FP2-PP42 FP2-HSCT FP2-PXYT |
|||
| SIEMENS | 40P Plug with a full range | ||||
| Yokogawa | F3WD64-3N
F3WD32-3F |
F3WD64-3F | |||
Related products
| Suitable cable | Suitable cable | X200-3 X210-3 | X200-4 X210-4
X210-5 X218-6 |
| For details,please refer to the directory cable series | |||
Specifications
| Input | Nominal operating current | 1A | |
| Nominal coil voltage | DC24V | ||
| Corresponding output Devices | Servo motor control
signal line circuit |
Button Switch,Photoelectric Switch, Solenoid, Indicator,Stepping Servo Motor, etc. | |
Dimension
Note: T022 and T022-K have the same shape size, T023 and T023-K have the same shape size.
● Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
● DIN Rail Mounting:Standard 35mm DIN RAIL
