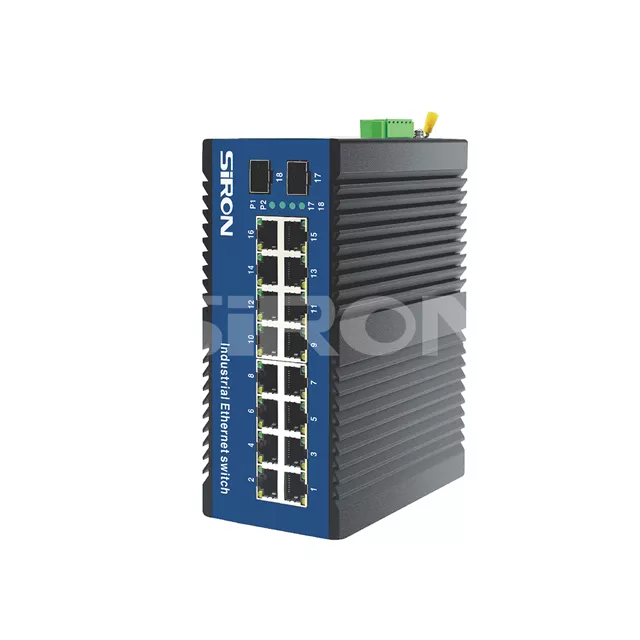

SiRON T380-14 2 Optical 16 Power Unmanaged Gigabit Industrial Switch
Giá: Liên hệ
Features
● 16 10/100/1000Mbps down electrical ports to 2 1000Mbps SFP up optical ports.
● 10/100/1000Mbps rate adaptive, MDI/MDI-X adaptive, full/half duplex adaptive.
● Support wide temperature design -40℃~85℃ to meet harsh environment application requirements.
● EMC industrial level 4 electromagnetic anti-interference.
● Support dual power supply redundancy backup, built-in overcurrent 4.0A protection, connected to reverse protection input power supply.
● Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.
Application industry
Industrial control application
Application in the intelligent coal mine industry
 |
 |
Selection reference
| Model | T380-14 |
| Electrical interface | 16 |
| Optical port | 2 |
| Speed | Gigabit |
| Power source | DC12-52V |
| Port description | 16×10/100/1000Mbps RJ45 port,2x1000Mbps SFP optical port |
Specification
| Rj45 port | 10/100/1000BaseT (X)automatic detection;Full/half-duplex MDI/MDI-X adaptive | ||||
| Network protocol | IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T; IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; IEEE802.3z-1000Base-X;IEEE802.3ab-1000Base-T; |
||||
| Access terminal | Phoenix Terminal | ||||
| Mean time between failures | 300,000 hours | Mechanical characteristic |
Shell | IP40 protection grade,metal | |
| Switch properties |
Backplane bandwidth | 36Gbps | Install | DIN card rail type,wall-mounted installation | |
| Application level | Two layers | Heat dissipation mode | Natural cooling,fanless | ||
| Packet forwarding rate of the system | 26.784Mpps | Working environment |
Operating temperature | -40~85℃(-40~185°F) | |
| MAC table | 16K | Storage temperature | -40~85℃(-40~185°F) | ||
| Packet buffer | 2M | Relative humidity | 5%~95%(without condensation) | ||
| Delay time | <3μs | LED index | Power indicator light | P1-P2(green) | |
| Switching mode | Storage -Forwarding | Data light | 1-16 Link/Act(green) | ||
| Overall power consumption | <10W | Optical port indicator | 17-18(green) | ||
