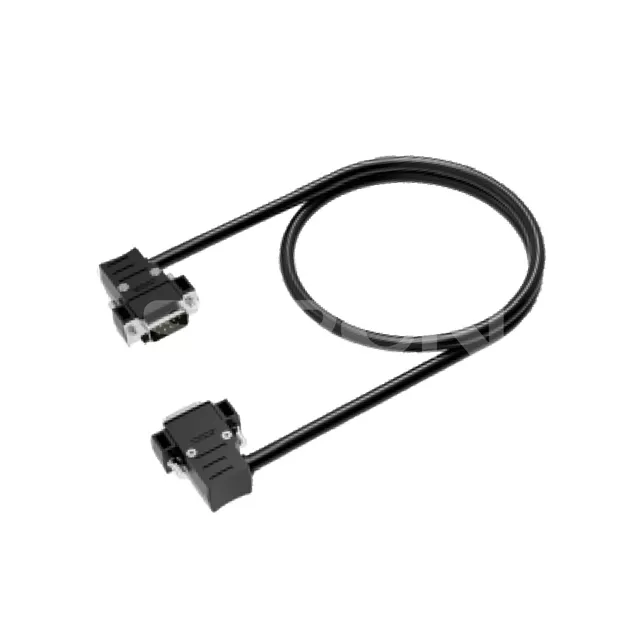

SiRON X230 Suitable Plug Servo Controller D-SUB Cable

Example

Notice：The above are standard models. If the other side is a loose line, please add “D” after the model, and note screw ruler when placing the order Inch (0.65/0.45), the default is 0.65 if not indicated, please consult relevant sales personnel for details.

Holes arrangement table

Hole location arrangement plan for SiRON company define the order of the standard, different manufacturers female head side of the hole location order may be different, and when using please pay attention to check.

Port corresponding list

All the products mentioned on the table are owned by SiRON Company, and please refer to the comprehensive catalogue for the relative specifications of T series “T090-B,” -B stands for male terminal station.
