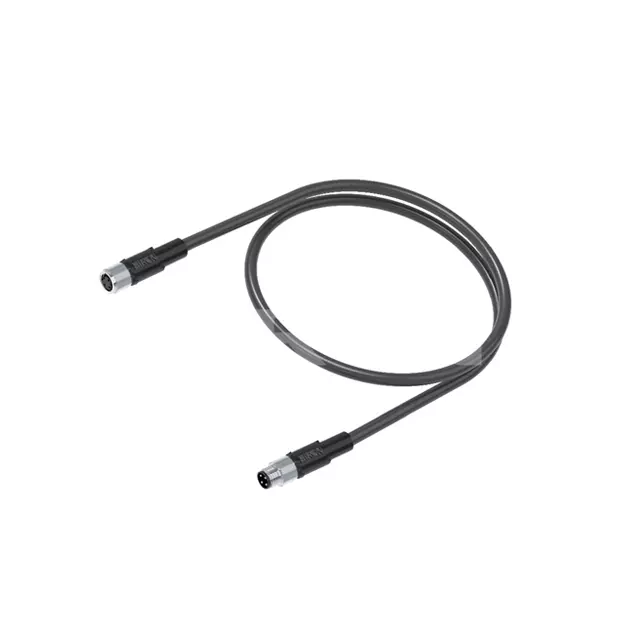

SiRON X236 M8 IO Precast Connection Pin Type Cable
Giá: Liên hệ
Features
● Low loss, anti-interference, excellent conductivity.
● Wear-resistant, stretch-resistant and durable.
● Stable transmission and long service life.
● Please according to PLC and Terminal Block specifications,select the suitable cable.
● Please don’t arbitrarily changed cable internal product.
Chi tiết sản phẩm
Product Description
Example
Selection example: X236-03A1 means X236 series, the number of cores is 3, the connector type is type A, the product type is straight pin type, straight pin type, PVC unshielded.
Table 1:Product Type
| 1 | Straight pin type,straight pin type |
| 3 | Straight pin type,bent pin type |
| 5 | Elbow needle type |
| 8 | Straight pin type,one end leads out |
| 9 | Bend needle type,one end leads out |
Cable specification
| Name | M8 I/O Connection line | |||
| Number of cores | 3 core | 4 core | 5 core | 6 core |
| Model | ModelX236-03A1 | X236-04A1 | X236-05B1 | X236-06A1 |
| X236-03A3 | X236-04A3 | X236-05B3 | X236-06A3 | |
| X236-03A5 | X236-04A5 | X236-05B5 | X236-06A5 | |
| X236-03A8 | X236-04A8 | X236-05B8 | X236-06A8 | |
| X236-03A9 | X236-04A9 | X236-05B9 | X236-06A9 | |
| Wire outer diameter | 4.5mm | 4.8mm | 5.0mm | 5.4mm |
| Cable specifications | 3C*0.25mm² | 4C*0.25mm² | 5C*0.25mm² | 6C*0.25mm² |
| Operating Voltage | Maximum 60V | |||
| Protection level | IP67 | |||
| Cable jacket | PVC PUR | |||
