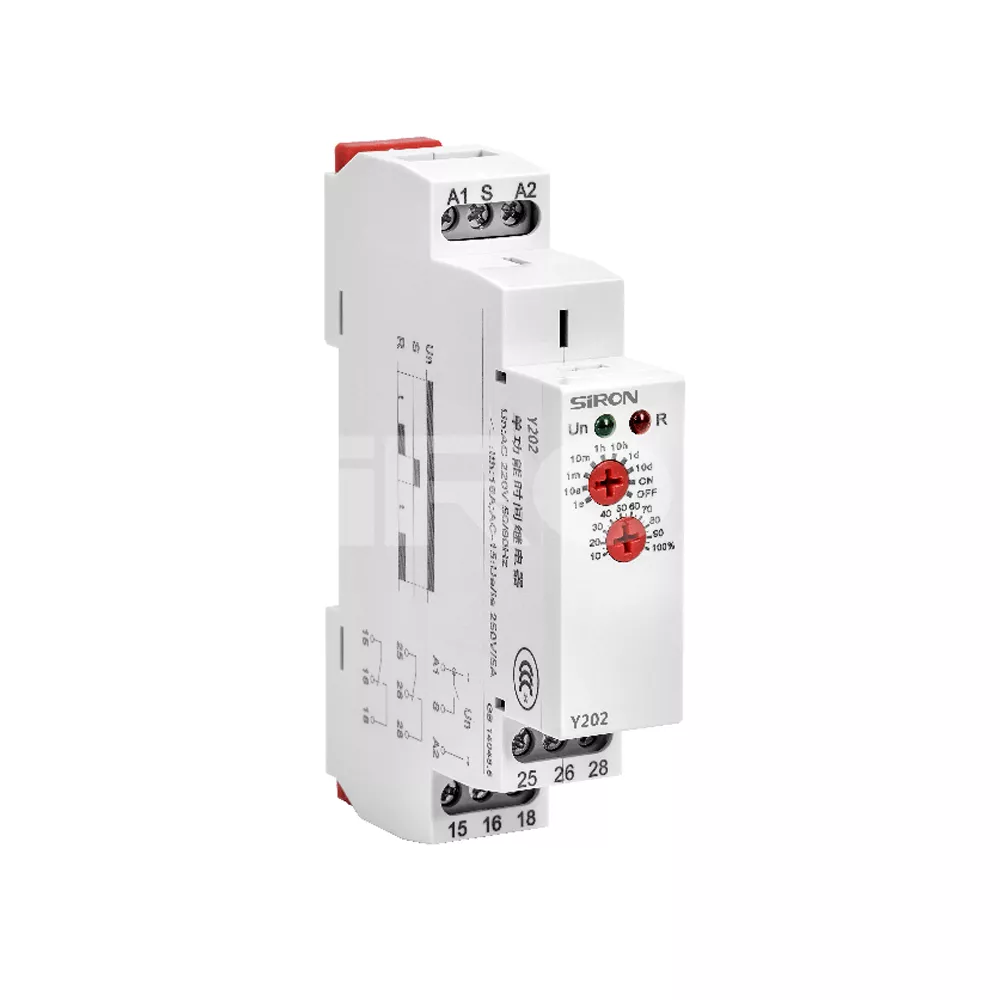

SiRON Y20 Series Convenient And Intuitive Single Function Time Relay

Giá: Liên hệ

Features

High cost performance, single function time relay, delay can be straight through the panelknob
Connectthesetting,convenient andintuitive;
With 1 group of delay, 2 groups of delay, 1 group ofdelay+1 group oftransient specifications optional;
Ultra-wide delayrange,0.1 SEC-10 days can be set (l0 gears);OptionalAC/DC12V-240Vultra wide working voltagespecification;
- Delay switching on or off a circuit, such as controlling the power on time ofa heating element,Pumpworkingtime.fan delaydisconnect.

Product Description

For Selection

Y20

Specifications

Model	Electnicity delay	Y200	Y200-1	Y202	Y202-1
	Delay to disconnect	Y201	Y201-1	Y203	Y203-1
Output number of contact groups		Group one conversion		Group Two Conversions
Output contact current		1×16A(AC1)		2×16A(AC1)
Output contact voltage		250VAC/24VDC
Rated control supply voltage		AC 220V (50-60Hz)	AC/DC12-240V (50-60Hz)	AC 220V (50-60Hz)	AC/DC12-240V (50-60Hz)
Consumed power		ACmax.6va/1.3W	AC 0.09-3VA/DC 0.05-1.7W	ACmax.6va/1.9W	AC₈.3-.YA/DC
Power supply alomable fuctuation range		-15%;+10%
Power indicator light		Green LED
Delay range		0.1 seconds to 10 days, always open, always closed
Set way		Rotary knob
Setting precision		10%
Repeat accuracy		0.2%
Temperature fluctuation error		0.05%/℃,at=20℃(0.05%°F,at=68°F)
Minimum switching power		500mW
Output relay indication		RedLED
Mechanical life		1×10
Electnical life(resistive load)		1×10⁵
Reset the time		Max200ms
Operating enironment temperature		-20℃~+55℃
Store and transport ambient temperatures		-35℃~+75℃
Installation		35mm Rail mounting
Protection grade		IP20
Installation position		Any
Installation altitude		≤2000M
Pollution levels		2
Wiring ability		1×2.5mm²or 2×1.5mm²0.4N.m
Overall dimensions		90mm×18mm×64mm
Conform to the standard		GB14048.5,IEC60947-5-1,EN61812-1
