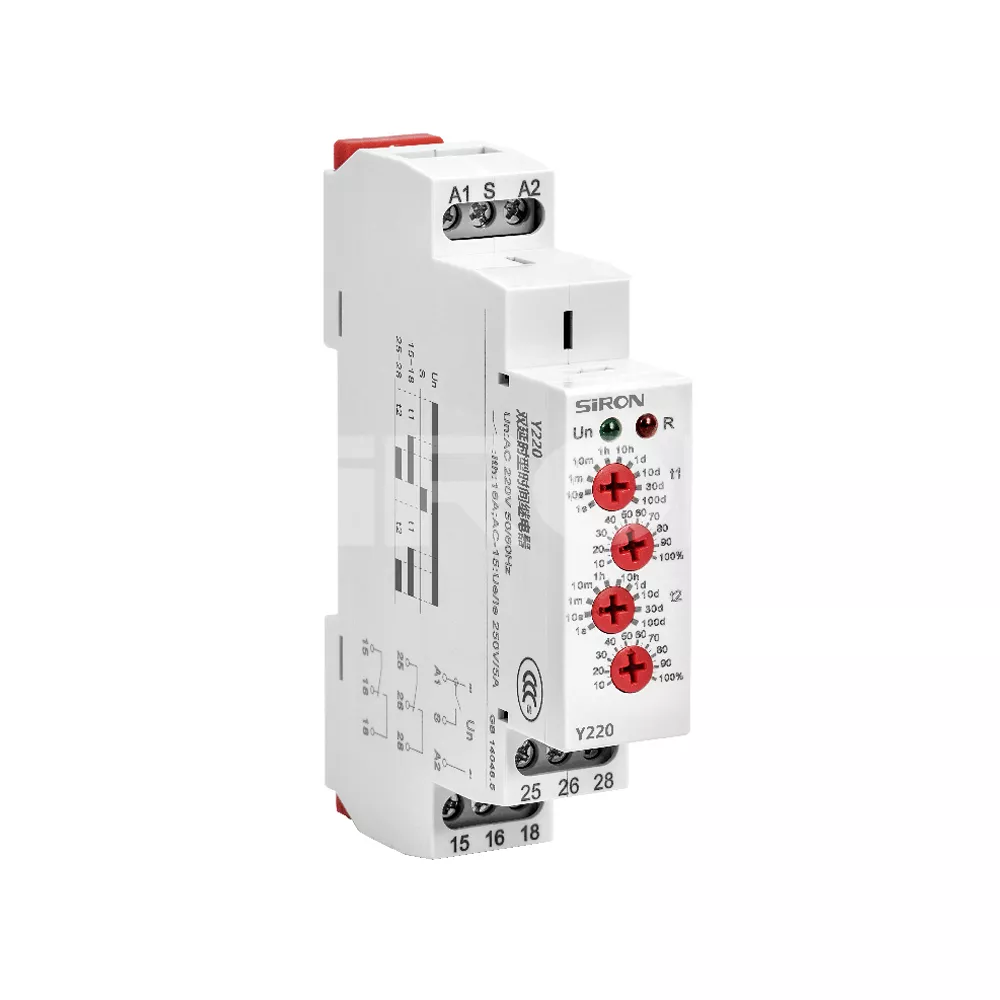

SiRON Y22 Series Group Two Conversion Double Delay Time Relay

Giá: Liên hệ

Features

Ultra-wide delayrange,0.1 SEc -10 days can be set (10 gears).
Optional AC/DC12V-240V ultra wideoperating voltage specification.
Relay working stateis indicated by LED indicator light.
Multi-function time relay can be used for industrial equipment, lighting control,Heating element control,motor control, fan control, with 10 kinds ofextension, the delay range covers 0.1 second to 10 days.

Product Description

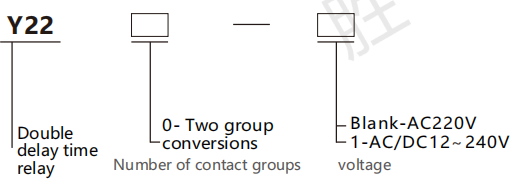

For Selection

Y22

Specifications

Model	Y220	Y220-1
Output number of contact groups	Two groups conversion contacts
Output contact current	2×16A(AC1)
Output contact voltage	250VAC/24VDC
Rated control supply voltage	AC 220V(50-60Hz)	AC/DC 12-240V(50-60Hz)
Consumed power	ACmax.6va/1.9W	AC 0.09-3VA/DC 0.05-1.7W
Power supply allowable fluctuation range	-15%;+10%
Power indicator light	Green LED
Delay range	0.1 seconds to 10 days, always open, always closed
Set way	Rotary knob
Setting precision	10%
Repeat accuracy	0.2%
Temperature fluctuation error	0.05%/℃,at=20℃(0.05%°F,at=68°F)
Minimum switching power	500mW
Output relay indication	Red LED
Mechanical life	1×10⁷
Electrical life (resistive load)	1×10⁵
Reset the time	Max 200ms
Operating environment temperature	-20℃~+55℃
Store and transport ambient temperatures	-35℃~+75℃
Installation	35mm Rail mounting
Protection grade	IP20
Instalation position	Any
Installation altitude	≤2000M
Pollution levels	2
Wiring ability	1×2.5mm²or 2×1.5mm²0.4N.m
Overal dimensions	90mm×18mm×64mm
Conform to the standard	GB14048.5,IEC60947-5-1,EN61812-1
