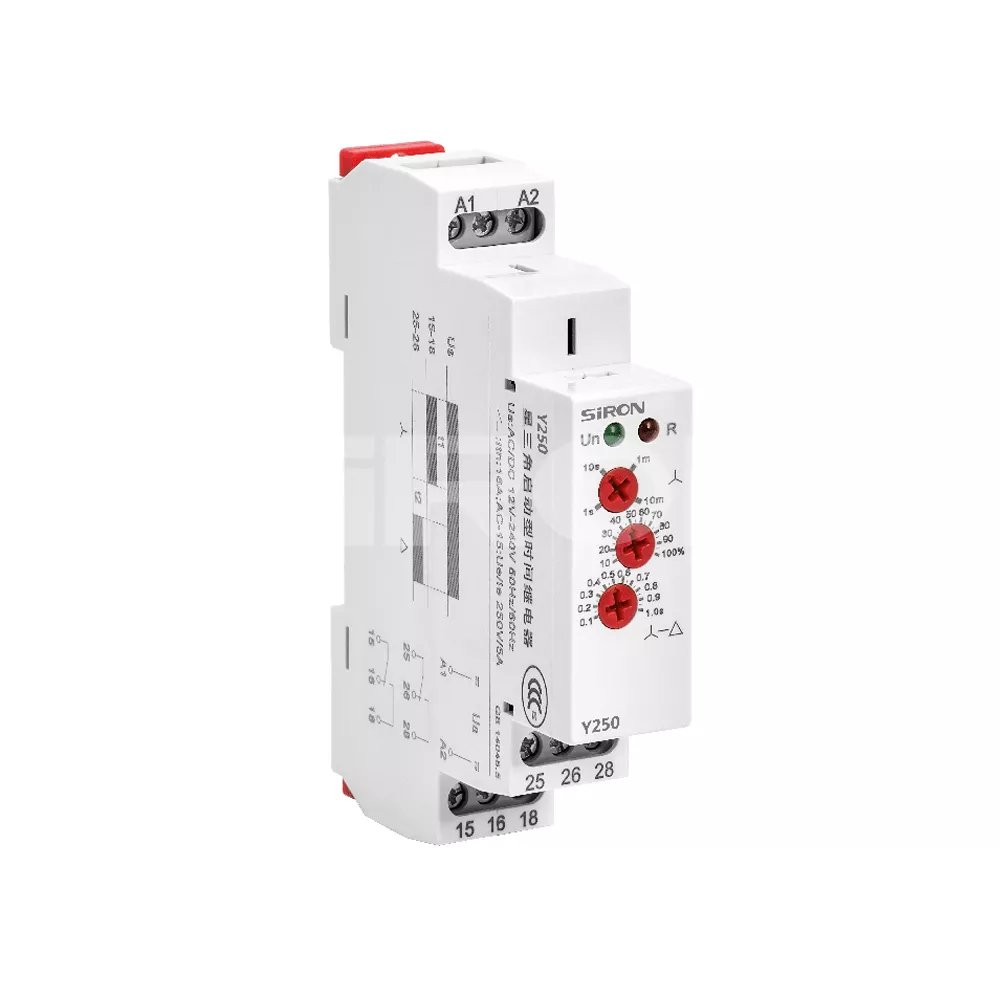

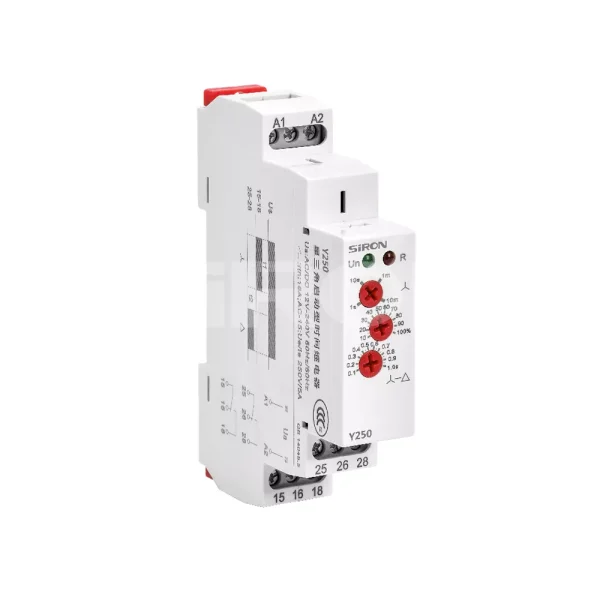

SiRON Y25 Series AC220,AC/DC12V-240V Star Delta Start Time Relay
Giá: Liên hệ
Features
- AC220,AC/DC12V-240 Vultra wide operating voltage specifications optional.
- Specially used for motor star delta start control, can greatly simplify the electricity
- Gas line.convenient connection,reduce the cost.
Chi tiết sản phẩm
Product Description

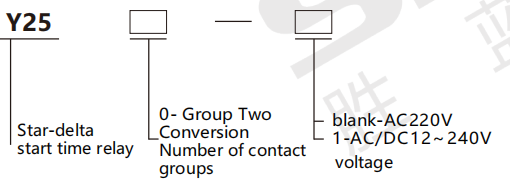

For Selection
Product function
| Model | Y250 | Y250-1 |
| Output number of contact groups | Two groups conversion contacts | |
| Output contact current | 2×16A(AC1) | |
| Output contact voltage | 250VAC/24VDC | |
| Rated control supply voltage | AC 220V(50-60Hz) | AC/DC12-240V(50-60Hz) |
| Consumed power | ACmax.6VA/1.3W | AC0.3-2VA/DC0.1-1.2W |
| Power supply allowable fluctuation range | -15%;+10% | |
| Power indicator light | Green LED | |
| Delay range | Startup delay: 0.1 second -10 minutes, conversion delay: 0.1 second -1 second | |
| Set way | Knob | |
| Setting precision | 10% | |
| Repeat accuracy | 0.2% | |
| Temperature fuctuation error | 0.05%/℃,at=20℃(0.05%°F,at=68°F) | |
| Minimum switching power | 500mW | |
| Output relay indication | Red LED | |
| Mechanical life | 1×10 | |
| Electrical life (resistive load) | 1×10⁵ | |
| Reset the time | Maximum 200ms | |
| Operating environment temperature | -20℃~+55℃ | |
| Store and transport ambient temperatures | -35℃~+75℃ | |
| Installation | 35mm rail mounting | |
| Protectiongrade | IP20 | |
| Instalation position | Any | |
| Instalation altitude | ≤2000M | |
| Pollution levels | 2 | |
| Wiring ability | 1×2.5mm²or 2×1.5mm²0.4N.m | |
| Overal dimensions | 90mm×18mm×64mm | |
| Conform to the standard | GB14048.5,IEC60947-5-1,EN61812-1 | |
