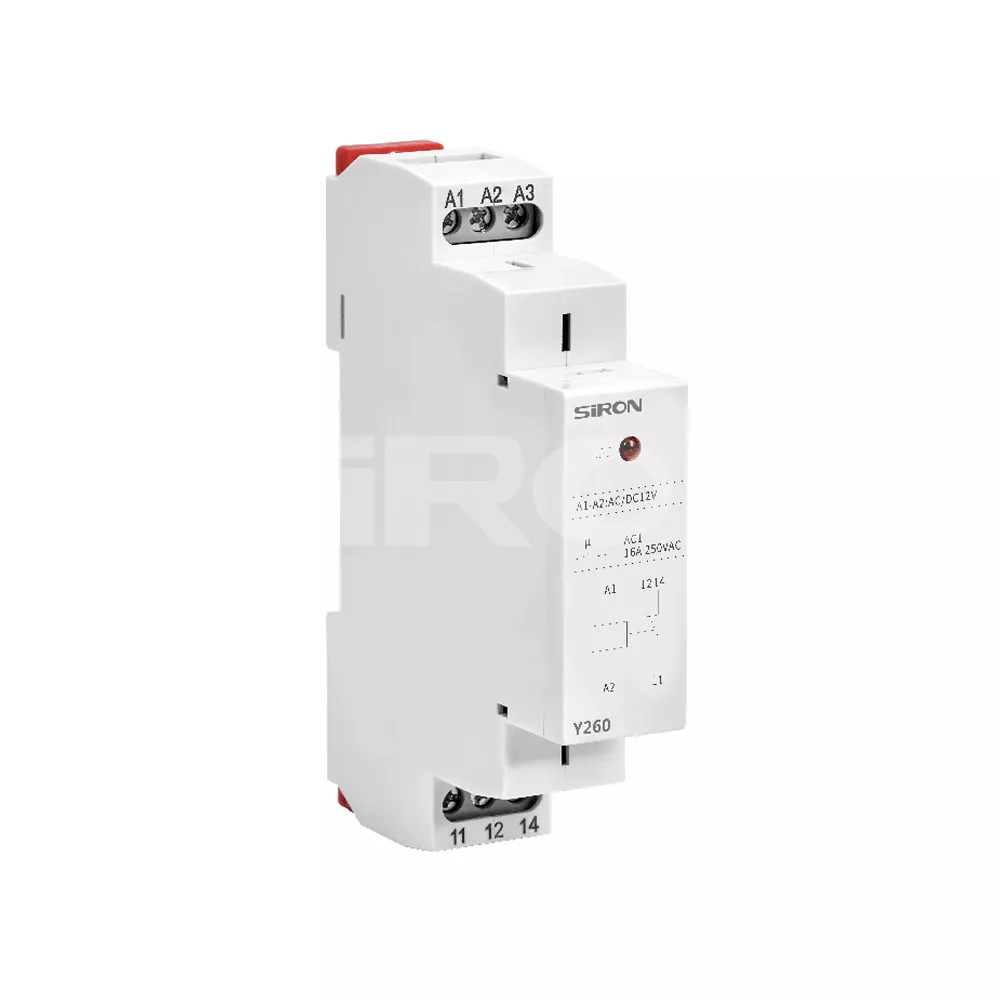

SiRON Y26 Series Multiple-contact of Intermediate Relay
Giá: Liên hệ
Features
- Rated voltage:AC/DC12V,24V,AC220V;
- Intermediate relay is used to switch certain current load and increase load energy
- Force orincrease:he numberof contact groups.
Chi tiết sản phẩm
Product Description

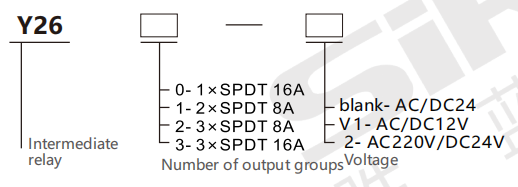

For Selection
Product function
| Model | The rated voltage |
AC/DC24V | Y260 | Y261 | Y262 | Y263 |
| AC/DC12V | Y260-1 | Y261-1 | Y262-1 | Y263-1 | ||
| AC220/DC24V | Y260-2 | Y261-2 | Y262-2 | Y263-2 | ||
| Output contact current | 1×16A(AC1) | 2×8A(AC1) | 3×8A(AC1) | 3×16A(AC1) | ||
| Output contact voltage | 250VAC/24VDC | |||||
| Rated supply voltage | AC 220V(A1-A2),AC/DC24V(A1/A3) | AC220V | ||||
| Consumed power | AC.max12VA/DC.max1.9W | AC.max6VA | ||||
| Power Supply alowable fluctuation range | -15%;+10% | |||||
| Maximum switching time | 40ms | |||||
| Minimum switching power | 500mW | |||||
| Output relay indication | Red LED | |||||
| Mechanical life | 1×10 | |||||
| Electrical life(resistive load) | 1×10⁵ | |||||
| Reset the time | Maximum 200ms | |||||
| Operating environment temperature | -20℃~+55℃(-4°Fto131°F) | |||||
| Store and transport ambient temperatures | -35℃~+75℃(-22°Fto158°F) | |||||
| Installation | 35mmMaximum | |||||
| Protection grade | IP20 | |||||
| Instalation position | Any | |||||
| Overvoltage category | I | |||||
| Pollution levels | 2 | |||||
| Wiring ability | 1×2.5mm²or 2×1.5mm²0.4N.m | |||||
| Overal dimensions | 90mm×18mm×64mm | |||||
