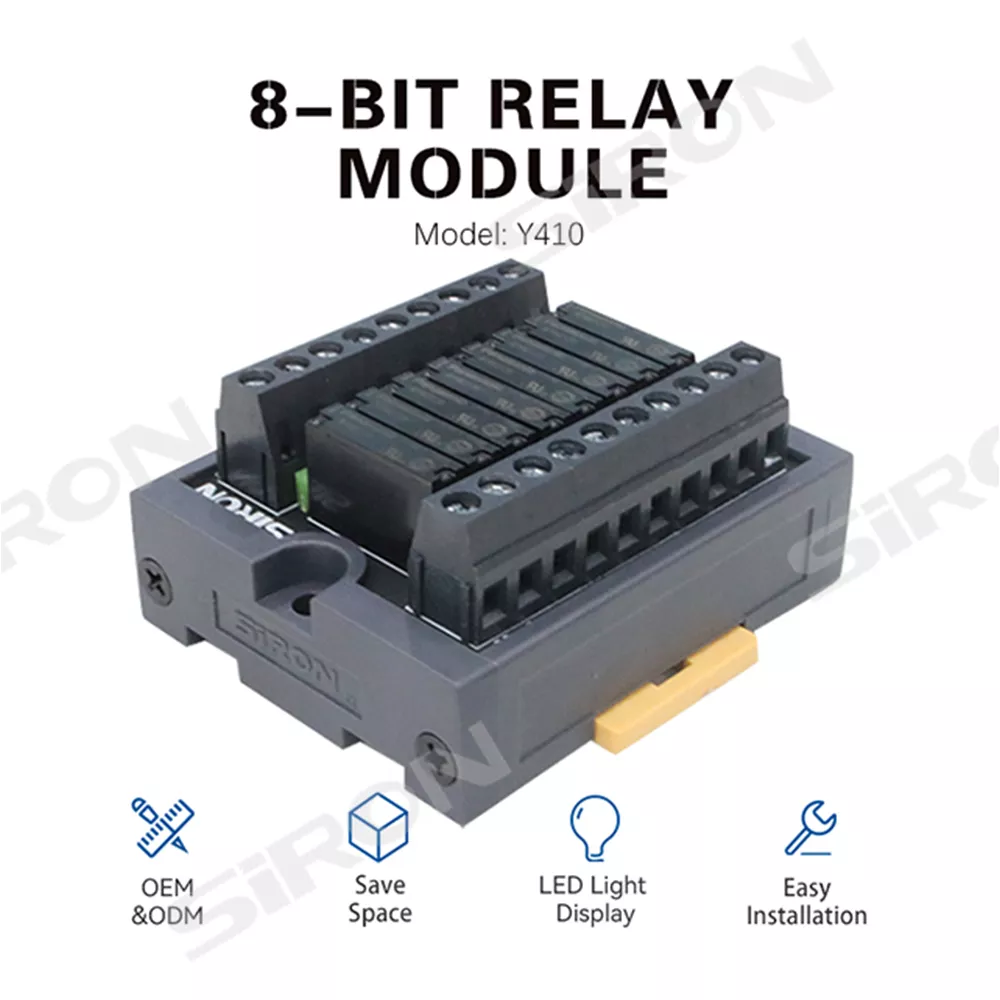

SiRON Y410~Y412 Series Plugged And Unplugged 8 Bit Relay Module
Giá: Liên hệ
Features
- Y410/Y410-P module is an output module corresponding to all PLC with terminal block connection ; A single-strip terminal connection is used for both the input and output;
- Y411/Y411-P module is an output module corresponding to all PLC with terminal block connection;A single-strip terminal black as the input end and a 10P MIL connector as the output end;
- Y412/Y412-P utilizes a 10P MIL connector as the input end and a single-strip terminal black as the output end, output of electric shock are independent of each COM port
- Y413/Y413-P utilizes MIL connection socket for both the input and output, facilitating remote wiring connection;
- Utilizes an 8 bit relay module for compact design to save space;Utilizes LED display, so all input and output statuses are visible;
Chi tiết sản phẩm
Product Description
Suitable wire
Type selection reference
| Model | Y410/Y410-P/Y410-T Y410-C/Y410-P-C
Y410-T-C |
Y410-A/Y410-D/Y410-AT Y410-A-C/Y410-D-C Y410-AT-C |
Y411/Y411-P Y411-C Y411-P-C |
Y412/Y412-P Y412-C Y412-P-C |
Y413/Y413-P Y413-C Y413-P-C |
| Name | 8-bit relay module | 8-bit pluggable Relay module |
8-bit relay module | 8-bit relay module | 8-bit relay module |
Note: 1. Add “C” after the model number for economical type, such as “Y410-C” 2. Add “O” after the model number for Omron exclusive use, such as “Y410-O” 3. For Omron pluggable, such as “Y410-A-O”, please consult the relevant sales staf
Suitable PLC
| Unlimited brand | Unlimited PLC | |
| Panasonic Direct connection |
FP0-C16T/C16CT(OUT) FP0-E8YT FPO-C16P/C16CP(OUT FPO-E16YT FPO-C32T/C32CT/T32CT(OUT) Fp-C32(OUT) FP0-C32P/C32CP/T32CP(OUT) Fp-C28(OUT) FP0-E16T/P(OUT) FPO-E32T/P(OUT) |
|
| Unlimited brand | Unlimited PLC | Unlimited PLC |
Specifications
| Input | Relay Coil Specifications | ||
| Nominal coil voiltage | DC24V | ||
| Nominal operating current | 7.5mA | ||
| Coil resislance | 3200Ω | ||
| Pick-up Voitage | Rated voltage 7 0 % | ||
| Drop-out Voltage | Rated voltage 5 % | ||
| Max.aliowable voltage | Rated voltage 1 2 0 % | ||
| Nominal operating power | 180 MW | ||
| Output | Swilch Circuit | ||
| Contact Specifications | Arrangement | 1Normally open(1NO) | |
| Initial contact resistance | 30mΩ(Voltage drop through the DC6V1A France) | ||
| Nominal switchingcapaczy (resistiveload) | 5A250VAC,5A30V DC | ||
| Max.switching power(resistive load) | 1250VA,150W | ||
| Max.switching woltage | 5A | ||
| Max.switching capacity | 250VAC;30VDC | ||
| Min.switching capacity | DC100mv 100uA | ||
| COM port | Max.switching capacity | 12A | |
| Expected Life | Mechanical | 2000 One million time (on-off frequency is 180 times per minute) | |
| Electrial | 10 One million time(on-off frequency is 20 times per minute) | ||
| Corresponding output Devices | Solenoid,Warning Light,Relay or Contactor. | ||
| Electrical properties |
Action time | 10ms | |
| Teset time | 5ms | ||
| Surroundings | Operating temparature | -40℃~70℃ | |
| Use humidity | 5%～85% | ||
Related products
| Suitable cable | X200-1 | X210-1 | X216 series cable
X200-1 X210-1 |
||
| Relay accessories |
Y920-24/P.203 |
Y920-24-C/P.203 |
 |
||
