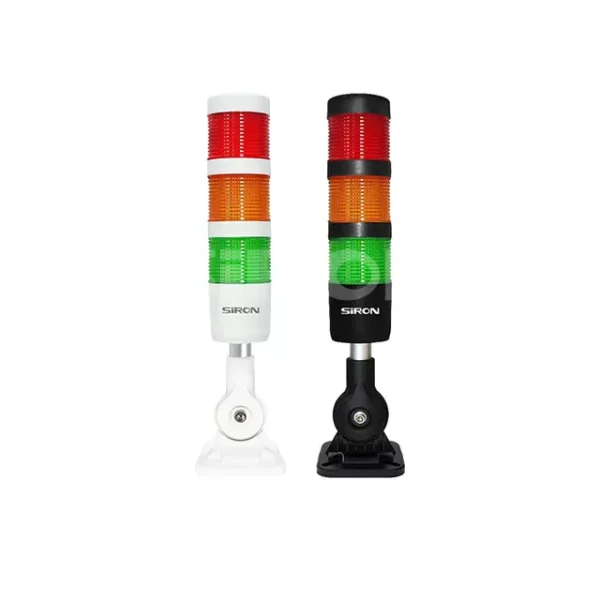

SiRON D017-1 Highlight Signal Tower Light

Giá: Liên hệ

Features:

* Exquisite and beautiful structure, unique and innovative appearance.
* Fully functional and cost-effective.
* High light LED patch.
* High brightness, large Angle, low thermal resistance.
* The overall structure design has good heat dissipation.
* The high quality drive plate guarantees the overall life of the lamp.

Chi tiết sản phẩm

Product Description

About selection

Type analysis
①	LED signal lamp series	D017-1
②	Working condition	B:Always on with beeping Q:Shining with beeping
③	Installation mode	Blank:Bent type 1:Upright type 2:L bracket
④	Rod length	Blank:50mm rod L1:110mm rod L2:215mm rod L3:240mm rod
⑤	Case color	Blank:white H:Black

Note:The 50mm bent rod length is a regular standard product.Others are custom-made products.If you need customization,please contact our sales department.

The L bracket can only be selected with a rod length of 240mm

Specifications

Model number	D017-1B	D017-1B-1	D017-1B-2
Appearance
input voltage/ input current	Input voltage:DC 24V Input current:Monochrome 30-70mA Buzzer 15mA
The material	PC lamp shade +ABS lamp shell
Power	1.2W～2W
Light source/Luminous angle	Light source:Surface mount 2835 LED Irritation angle:360°
Sound intensity/Class of protection	sound intensity:>90dB IP Grade:IP54
Color layer	Three layers and three colors
Working condition	Always on with beeping/Shining with beeping
Installation mode	Bend type	Up-straight type	L bracket
Number of flashes	60-70/min
Service life/Standard wiring length	service life:50000hWiring length:500mm
Connection mode	NPN/PNP common
Ambient temperature/storage temperature	-20~45℃/-40~70℃
Ambient humidity/Storage humidity	10~90%
Luminescent lamp source color
