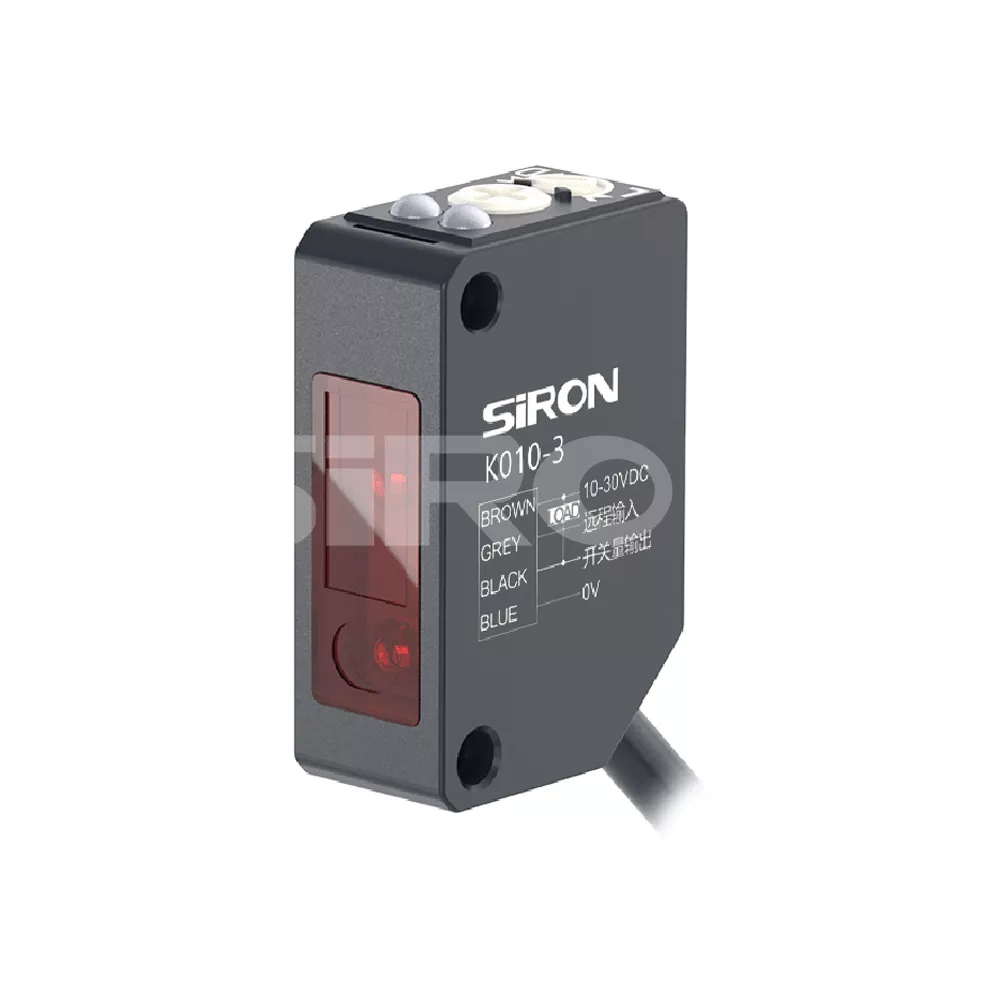

SiRON K010-3 Series Universal Laser Sensor Diffuse Reflection IP67
Giá: Liên hệ
Features:
* Not interfered by objects and background colors, stable detection Laser light source, suitable for long-distance detection of small objects.
* Built-in multi-turn potentiometer for fine adjustment of sensitivity.
* Built-in multi-turn potentiometer for fine adjustment of sensitivity.
Chi tiết sản phẩm
Product Description
About selection
Selection example: K010-3 indicates the K010 series, serial numbers 3, with NPN output.
K010-3P indicates K010 series, serial numbers 3, with PNP output.
Specifications
| Name | Laser sensor (universal) | |||
| Model | K010-3 | K010-3P | ||
| Output state | NPN | PNP | ||
| Appearance |  |
|||
| Type | long-distance type | Laser dass | Class1 | |
| Detection mode | Diffuse reflection (background suppression type) | Operating voltage | 10～30VDC±10% | |
| Setdistance | 50～300mm | Consumption cuIrent | ≤30mA | |
| Detection distance | 10~300mm | Ambient temperature | – 10℃~+50℃,No freeze | |
| Spot size | φ1.5mm/300mm | Ambient humidity | 3 5 % ～ 8 5 % R H , No Coagulation | |
| Switching mode | Lon(light-entering action)/Don(light-blocking action) can be switched | Impact resistance | 50G(500m/s²) | |
| ndicator light | Output indicator light: Orange, laser indicator light: green | Protection class | IP67 | |
| Response time | 0.3ms | Material | Shell: Contains fiberglass ABS, Lens： PMMA |
|
| Sensitivity regulation | 4-turn potentiometer | ACCessories | Bracket, Screw | |
| Light source | Laser 6 5 0 n m | Cable length | 2M | |
