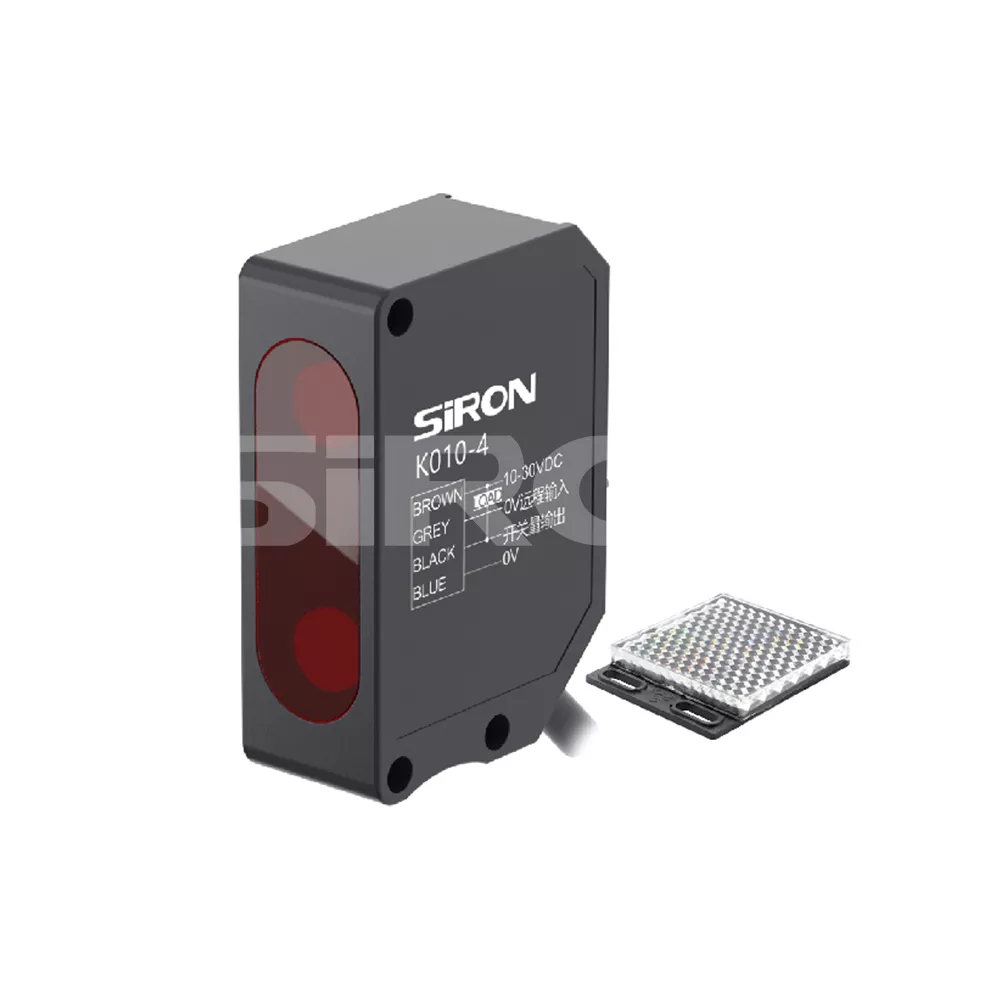

SiRON K010-4 Series Universal Laser Sensor Regression Reflection IP67
Giá: Liên hệ
Features:
* Suitable for all kinds of glass /PET bottle testing Automatically adjust the threshold value according to the change of the current
light amount
* LED coaxial light source, easy to achieve calibration
light amount
* LED coaxial light source, easy to achieve calibration
Chi tiết sản phẩm
Product Description
About selection
Selection example: K010-4 indicates the K010 series, serial number 4, with NPN output.
K010-4P indicates the K010 series, serial number 4, with PNP output.
Specifications
| Name | Laser sensor (universal) | |||
| Model | NPN | K010-4 | ||
| PNP | K010-4P | |||
| Type | Regression reflection – Transparent Body Detection (Coaxial Light Source) | |||
| Appearance |  |
|||
| Detection distance | 1.5m | Delay function | Value-added unit for the 0-999ms range: 1ms; The value-added unit for the range of 1 to 10ms is 1ms | |
| Spot size | φ15mm/1.5m | Ambient luminosity | sunniness ≤1000Lux, Illuminated by a white woven lamp≤300Lux |
|
| Operating voltage | 10～30V DC±10% | Ambient temperature | – 1 0 ℃ ~ + 5 0 ℃ , No freezing | |
| Consumption current | 35mA | Ambient humidity | 3 5 % ～ 8 5 % R H , No coagulation | |
| Light source | Laser 650mm , Max 1mW | Insulation strength | ≥20MΩ(500V DC) | |
| Laser class | Class2 | Impact resistance | 50G(500m/s²), in the X, Y, and Z directions | |
| indicator light | Output indicator light: Orange;
Laser indicator light: Green |
Protection class | IP67 | |
| Digital screen display | 7 sections, 3-digit red LED display | Material | Shell: Antibacterial ABS; Lens ： P M M A | |
| Sensitivity regulation | Button adjustment | Cable | 4-core cable | |
| Output mode | NPN/PNP open-collector output, ≤100mA/30V DC |
Cable length | 2M | |
| Switching mode | Lon(light entry action)/D.on(light blocking action) can be switched | Accessories | Brackets, screws, reflectors | |
| Response time | 0.7ms | |||
